Ring Facing Fixture 3
13-Nov-2007
I made the ring facing fixture following the drawings in Joseph F. Nelson's
book, So you Want to Build a Live Steam Locomotive". I have made a
drawing of how I would make it if I had it to do over. After the rings
are parted off, I placed the freshly cut off side out and tightened the
chuck. I then faced them off to the correct thickness.

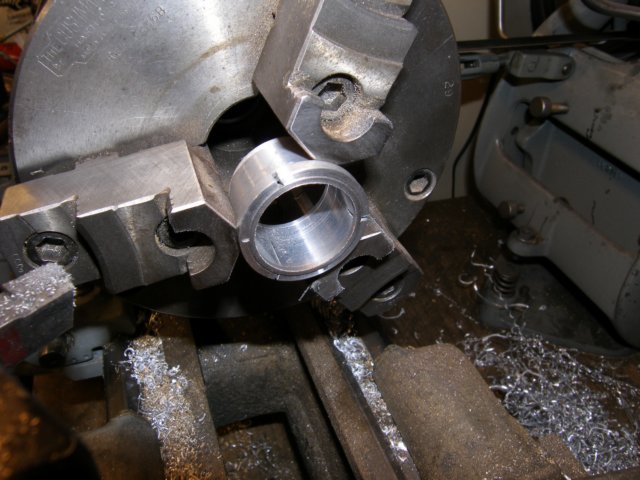

This picture has the ring installed.
